HV30 Agricultural Drone for Fertilizer Spreading, Spraying, and Environmental Protection

Brand Name : GS

Model Number : HV30

Place of Origin : Guangdong, China

Price : Negotiable

Payment Terms : T/T

Supply Ability : 100

Delivery Time : 6-8

Unfold size : 1710*1453*700mm

Folding size : 603*1120*700mm

Diagonal wheelbase : 2000mm

Weight : 26.8KG

Takeoff weight : 68KG

Volume of medicine cabinet : 30L

Spreader box volume : 50L( Limited 30kg )

Spraying Flow : 12L/Min

Effective spray width : 5-8M

Flight Speed : 5-10M/S

Operation Power : 58.8V(14S)

Battery : 14S 30000mah

Operating temperature : -10 ℃-- 40℃

Storage mode : The arm folds sideways

Spraying system : Centrifugal nozzle

Flight time : Empty Tank( 15Min )Full Tank ( 8Min )

Contact Now

HV30 Agricultural Drone for Fertilizer Spreading, Spraying, and Environmental Protection

Product Overview

The HV-AG 30L Agricultural Spraying Drone is a high-performance UAV designed for large-scale farmland operations. With a modular structure for easy maintenance, it features an intelligent flight control system and a precision spraying unit. This drone delivers enhanced efficiency and chemical utilization, making it ideal for spraying crops, orchards, and economic plants.

Powerful Spraying Performance

Equipped with a dual-pump system and intelligent flow control, the HV-AG supports a spraying rate of 6–8 liters per minute with a spray width of 2–4 meters. Its 30L high-capacity tank reduces refill times and increases work efficiency, making it perfect for large-area crop protection.

Smart Flight and Operation

This drone is powered by a multi-redundant flight control system, offering autonomous flight, AB point planning, terrain following, and breakpoint resume spraying. Integrated RTK positioning ensures centimeter-level accuracy, enabling stable and intelligent operation even in complex environments.

Precision spraying System

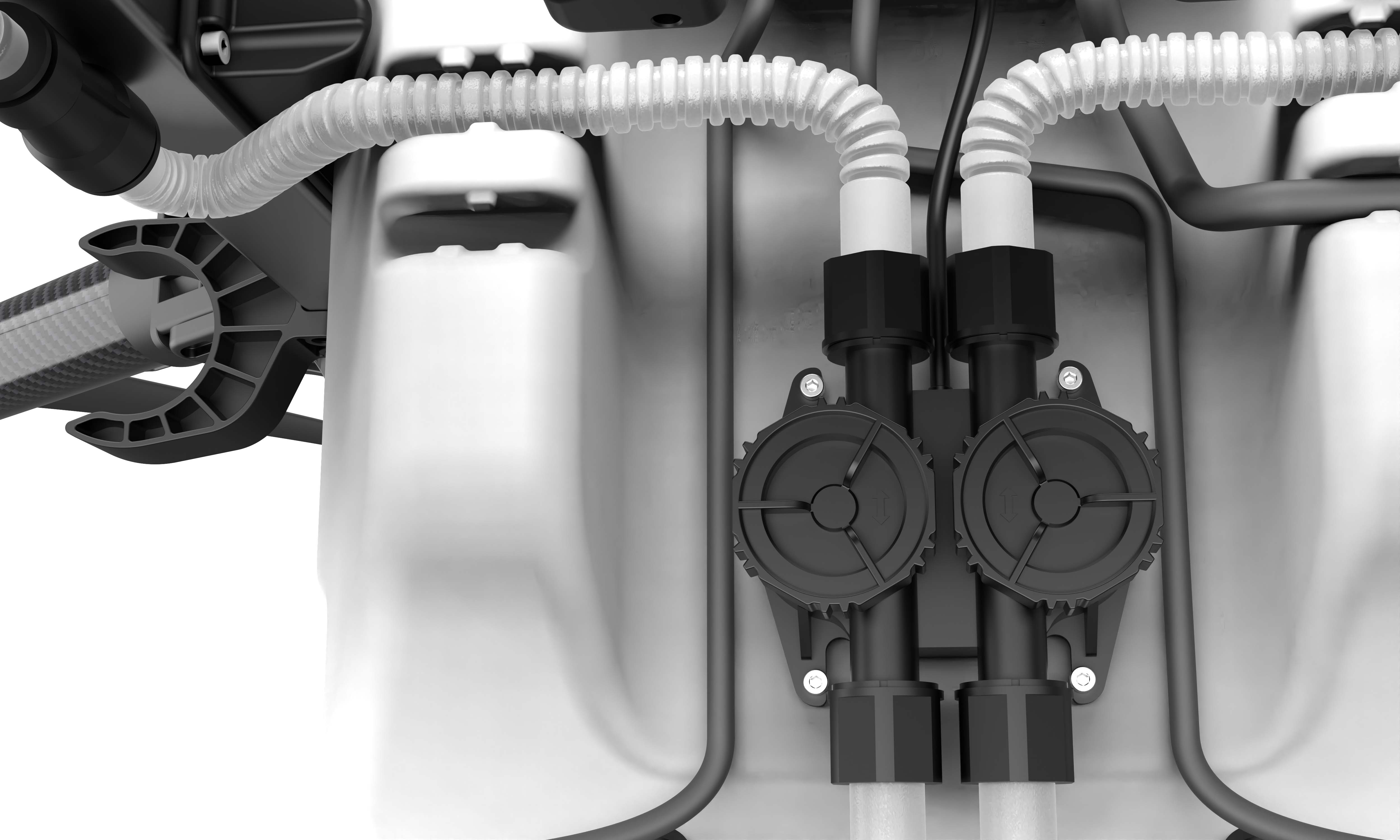

The HV series is equipped with advanced multi-nozzle spraying technology to ensure uniform and precise application of pesticides, herbicides and fertilizers.The adjustable flow rate can be tailored to the needs and chemical type of a particular crop, optimising treatment results.

FAQ

Q: Is the 30L tank replaceable or fixed?
A: The 30-liter tank is modular and detachable, allowing for quick cleaning or replacement if needed.

Q: Is the drone easy to transport?
A: Yes. With foldable arms, the drone can be quickly packed and deployed in minutes, making it easy to transport.

Q:What types of chemicals are compatible with the drone?
A: The drone is compatible with most liquid pesticides, herbicides, and fertilizers. Avoid using highly corrosive or overly viscous liquids without proper dilution and filtering.
